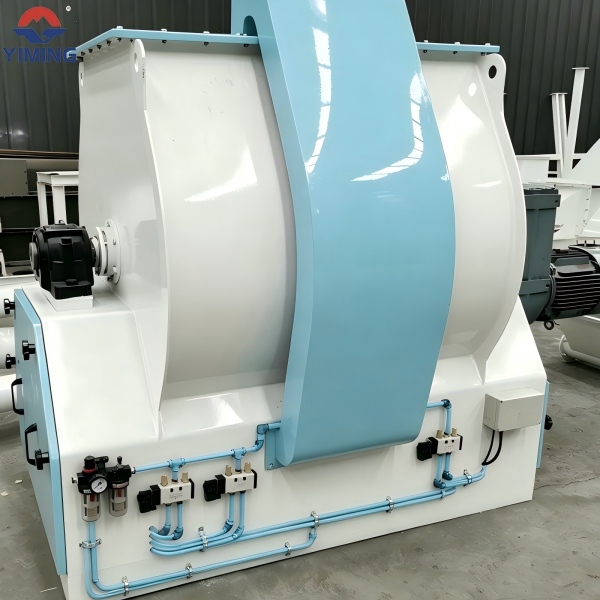

Double shaft paddle mixer

Product description:
9HWS Series Double –shaft Paddle-arm Mixer applies to the mixing of powders, grains, flakes, block sand liquid etc of fodder, grain, chemical industry, medicines, pesticide and additive etc.

We're here to help:Easy ways to get the answers you need.

Send e-mail chat now

Share with :

  • Product description
  • Technical parameter
 1. 9HWS Series Double –shaft Paddle-arm Mixer applies to the mixing of powders, grains, flakes, block sand liquid etc of fodder, grain, chemical industry, medicines, pesticide and additive etc.

2. Fast mixing speed and high mixing uniformity;

3. Special design discharging structure, large door-open angle, swift discharging and little residue;

4. Special design sealing system of discharging door, good sealing and no leakage;

5. Set multi-channel liquid adding system to meet needs that the users add more kinds of liquid.







Model Overall dimension(mm) Effective volume (m³) Mixing amount per batch(kg) Mixing time per batch(s) Mixing evenness CV% Power(kw)
9HWS-100 1350*1420*1030 0.2 100 30-120 ≤5 3
9HWS-250 1670*1650*1300 0.5 250 30-120 ≤5 5.5/7.5
9HWS-500 2150*1960*1600 1 500 30-120 ≤5 11/15
9HWS-1000 2600*2600*1860 2 1000 30-120 ≤5 18.5/22
9HWS-2000 3150*3040*2400 4 2000 30-120 ≤5 30/37
